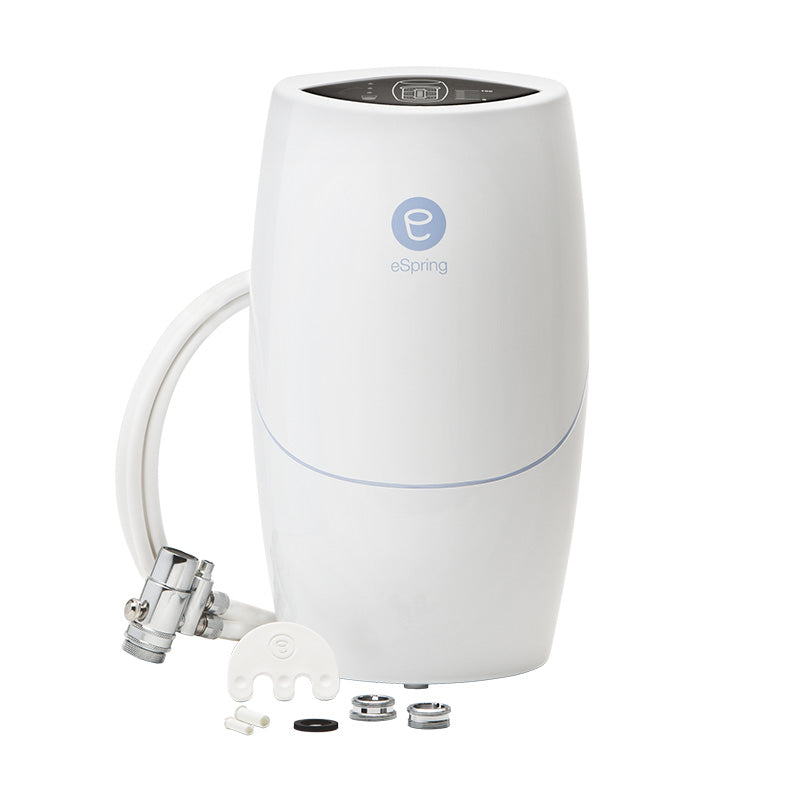

eSpring™ Water Filtration System for existing faucet (installation above work surface)

eSpring™ is the world's best-selling brand of home water filtration systems.*

• This three-stage filter system utilizes both proven and new technologies.
• The patented** activated carbon block filters particles that are 300 to 500 times thinner than a human hair.
• "Instant On" technology – the UV bulb in the filter cartridge only switches on when the tap is turned on, so that only cold water flows which has not been heated by the UV light.
• intelligent, elegant and space-saving design
• The monitoring function confirms the active operation of the carbon filter and the UV lamp and informs you about the time of the annual filter change.
• The hose length can be adjusted to the desired length.
• The unit is delivered pre-assembled at the factory.
• The eSpring system works with standard household water pressure.
• eSpring is the first water filtration system with wireless coupling and smart chip technology.
• The eSpring™ Water Filter System utilizes patented*** eCoupled™ wireless power technology, allowing electricity to be conducted through air, water, and plastic components to power the unit's UV lamp.
• The eSpring Smart Chip enables wireless communication with individual filter cartridges, allowing operating conditions to be detected and displayed by the monitoring function and enabling the download of important information within individual filter cartridges (such as remaining time and capacity).
• More than 120 patents have been filed or are in the approval process for the eSpring water filtration system.

TECHNICAL DATA of the eSpring™ water filtration system:

• Height of the case: 327 mm nominal
• Diameter: 178 mm nominal. Made from durable, high-impact plastic.
• Power supply: 19 V DC, 3.16 A
• Filter cartridge (Model No. 100186): Pressed carbon block with internal UV lamp
• Materials: All materials that come into contact with liquids meet the requirements of the US Food and Drug Administration (FDA) for use in the transmission of liquids for human consumption.
• Maximum operating pressure : 860 kPa (8.6 bar)
• Minimum operating pressure: 104 kPa (1.04 bar)
• Maximum operating temperature : 30°C
• Minimum operating temperature : 4.4°C
• Nominal water flow rate : 3.4 liters per minute at 415 kPa (4.15 bar) water pressure and with a new filter. (The actual flow rate depends on the water pressure and the time since the last filter cartridge change.)
• Filter lifespan: The filter cartridge is designed to meet the normal cooking and drinking water needs of an average family. This is estimated at one year or 5000 liters. NOTE: The actual lifespan depends on usage intensity and the quality of the water passing through.
• Installation : Quick and easy.
• Replacing the filter cartridge : Also quick and easy. Can be done by the user. The water filter system does not need to be sent back to the factory to replace the filter cartridge.
• Tests: The system was tested and certified by NSF International and WQA according to NSF/ANSI standards 42, 53 and 55.

* Based on a study by Verify Markets of global revenue in 2012
** Patented in Italy; Note: The average thickness of a human hair is 60 to 100 micrometers.
*** Patented in various European countries

Advantages:

Can reduce over 160 pollutants, including over 145 potentially hazardous substances:
o Lead and mercury
o Particles up to a size of 0.2 micrometers including asbestos, residues, dirt and lime.
o 33 Pesticides and their by-products
o 13 Disinfection by-products
Radon and radon decay products in drinking water
o 9 pharmaceutical pollutants
42 known and/or suspected endocrine disruptors
o potential carcinogenic substances (carcinogens) that could be present in the water

• Destroys 99.99% of disease-causing bacteria and viruses found in drinking water (including E. coli, HPC bacteria, polioviruses, rotaviruses and hepatitis A)
• This improves the taste, smell and clarity of the drinking water.
• Improves the taste of drinks prepared with filtered water.
• Beneficial minerals such as calcium, magnesium and fluoride are not removed.
• Filters enough cooking and drinking water for a family of up to 6 people for one year or a water volume of 5000 liters (filter lifespan depends on operating time and usage)
• With an above-average flow rate, filtered water is dispensed at a rate of 3.4 liters per minute.
• practical with easy operation and maintenance
• with exclusive, patented technology*
• Practical and easily replaceable carbon/UV filters
• more practical and less expensive than bottled water
• Monitoring of the time status and water flow provides the consumer with an accurate indication of the remaining filter life. The system automatically resets itself after the filter is replaced.
• uses easy-to-understand symbols/graphics to display the remaining filter lifespan and the system status
• Flexible installation options allow the device to be placed in the most suitable location. *Patented in various European countries
